组件名称

规格

处理器

8/9th Generation Intel® CoreTM Processors,LGA 1151 Socket

芯片组

Intel® H310 Chipset

系统内存

2*260-pin SODIMM up to 32GB,Dual Channel DDR4 2400/2666MHz

BIOS

Insyde SPI 128Mbit

网络

1*Intel® I219V PHY (10/100/1000Mbps) 1*Intel® I211AT PCIe (10/100/1000Mbps)

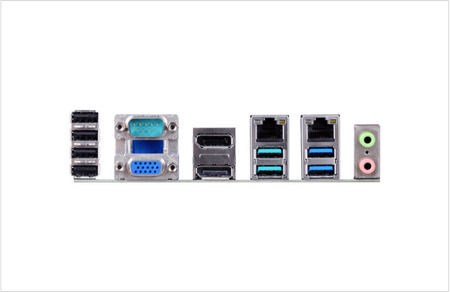

背部I/O接口

以太网络

2*GbE (RJ-45)

USB

4*USB 3.1 Gen1, 4*USB 2.0

显示

1*VGA,2*DP++

串口

1*RS232(DB-9)

音源

1*Line-in (available upon request), 1*Line-out, 1*Mic-in

内部I/O接口

串行端口

1*RS-232 (RS-232 w/power)(2.0mm pitch)

DIO

1*8-bit DIO

音效

1*S/PDIF, 1*Front Audio

SATA

3*SATA 3.0 (up to 6Gb/s)

显示

1*LVDS LCD Panel Connector, 1*LCD/Inverter Power

扩展槽

1*PCIe x 16(Gen 3), 1*mSATA

显示

1*LVDS:resolution up to 1920x1200 @ 60Hz 1*VGA:resolution up to 1920x1200 @ 60Hz 2*DP++:resolution up to 4096x2304 @ 60Hz

音频

Realtek ALC888S-VD2-GR

温度

工作温度: 0 to 60°C, 存储温度:-40 to 85°C

湿度

工作湿度:5 to 90% RH, 存储湿度:5 to 90% RH

尺寸

170mm (6.7")*170mm (6.7")
