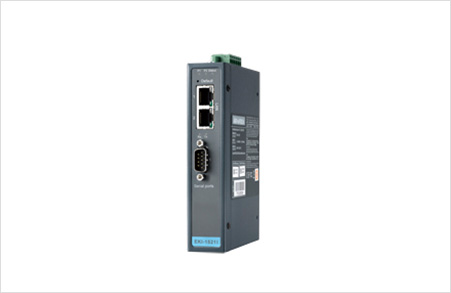

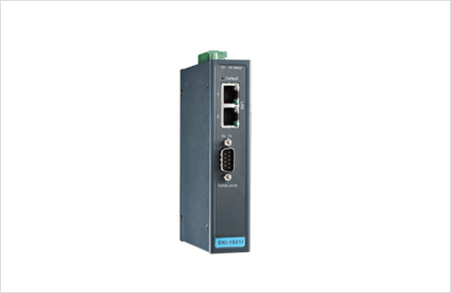

EKI-1521I
支持2个10/100 Mbps 自适应以太网端口
提供串口重发(虚拟串口),TCP和UDP操作模式
支持最大921.6kbps波特率
每串口最多支持5台主机同时访问
最多支持16台主机访问TCPClient模式
内建针对所有串行信号的15KV ESD保护
提供了丰富的配置方法,包括windows程序、telnet和web
支持32位/64位 Windows 2000/XP/Vista/7,Windows server2003/2008,Windows CE 5.0及Linux
RS-485自动数据流控制
支持D.C. 电源端口突波保护,线对线 2 KV,线对地 4 KV;讯号端口 4 KV。
-40 ~ 70° C (-40 ~ 158°F)宽作溫度
规格

Part Number

UNO-1372G-E3AE

UNO-1372G-J021AE

General

Power Consumption

24W (Typical), 50W (Max)

19W(Typical) 35W(Max)

Power Requirement

9~36VDC (Recommend 12/24 VDC)

10~36 VDC

Certifications

CE, FCC, UL, CCC, BSMI

CCC, CE, FCC, UL, BSMI

Mounting

DIN-rail, Wall mount

DIN-rail

Enclosure

Aluminum Housing

Aluminum Housing

OS Support

Microsoft® Windows 7/8/10, WES7, AdvLinux

Microsoft® Windows 7/8/10, WES7, AdvLinux

Weight (Net)

1.6kg (3.5lbs)

1.0kg (2.2lbs)

Form factor

Small Size

Small Size

Dimensions

-

65 x 105 x 150mm (2.6" x 4.1" x 5.9")

System Hardware

Memory

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Storage

One drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD) (Optional), CFast drive by iDoor Technology (Optional)

1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

Expansion

2 Full-size mPCIe

2 Full-size mPCIe

Ethernet

LAN A, B: Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az LAN C: Realtek RTL8111E GbE

Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 6 levels timer interval, from 15 to 255 sec

BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 64Mbit Flash BIOS

Processor

Intel Atom E3845 1.91GHz, 2MB L2 Cache

Intel Celeron Quad Core J1900 2.0 GHz

System Chip

Intel Atom SoC integrated

Integrated Intel SoC Chipset

Graphics Engine

Intel® HD Graphics

Intel® HD Graphics

LED Indicators

LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED

LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED
