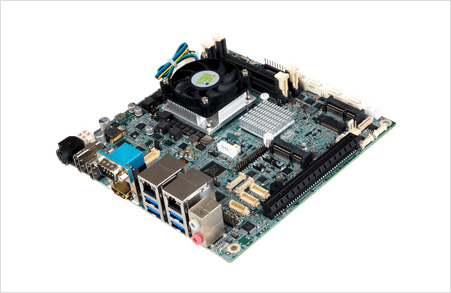

Spec Item

Description

Dimensions

Dimensions

170mm x 170 mm

Display

Display Output

Triple independent display

2 x HDMI 1.4 (up to 4096x2160@24Hz)

1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)

1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Environment

Humidity

5% ~ 95%, non-condensing

Operating Temperature

-20°C ~ 60°C

Expansion Slots

Expansion Slots

1 x Full-size PCIe Mini (support mSATA)

1 x M.2 2230 (A key)

1 x Half-size PCIe Mini

1 x PCIe x16 slot

I/O Interface

Audio

Realtek ALC662 HD Audio codec supports 5.1-channel

2 x audio jacks(line out, mic in) on rear I/O (colay with 3x audio jack)

1 x Front audio (2x5 pin)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Ethernet

LAN1: Intel® I219LM with (Intel® AMT 11.0 support) LAN2: Intel® I211 PCIe controller with NCSI support

I/O Interface

I/O Interface

1 x KB/MS((1x6 pin, P=2.0)) 2 x Internal RS-232/422/485((1x9 pin, P=1.25)) 3 x Internal RS-232((1x9 pin, P=1.25)) 4 x Internal USB 2.0((2 x 4pin,P=2.0)) 4 x SATA 6Gb/s((RAID 0/1/5/10 support)) 1 x SMBus((1x4 pin))

Power

Power consumption

12V@5.08A (Intel® Core™ i7-6820EQ, 3.5GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory)

Power Supply

12V DC input

System

Chipset

Intel® QM170

CPU

6th generation Intel® Core™ mobile processor Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W) Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W) Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W) Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)

Memory Max.

Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported

(system max. 64 GB)

Weight

Weight

GW:900g, NW: 450g
