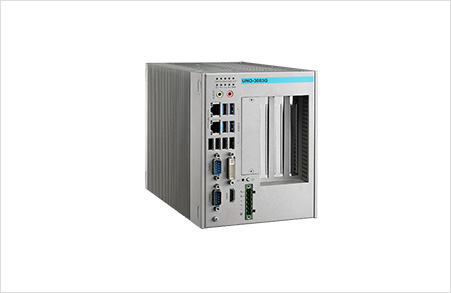

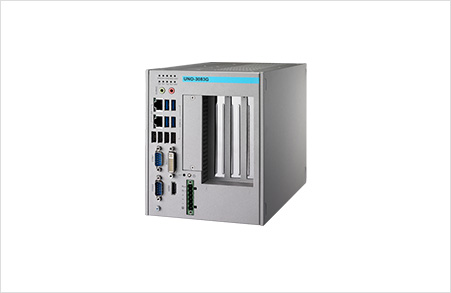

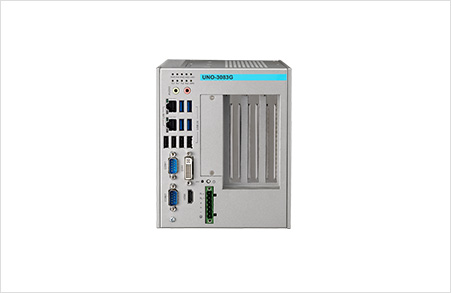

Part Number

UNO-3083G-D64E

General

Certifications

CE, UL, CCC, FCC, BSMI

Mounting

Wallmount, Stand mount, Panel mount

Power Consumption

45W (Typical), 130W(Max)

Weight

4.5 kg

OS Support

Windows XP, Windows7/8, WES7, WES-2009

Enclosure

Aluminum

Power Requirement

12V ±20%/ 24V ±20% (e.g +24 V @ 5 A)

System Design

Fanless with no internal cabling (except COM1/COM2)

Dimensions

148 x 238 x 177 mm (5.8" x 9.3" x 7.0")

System Hardware

CPU

Intel Core i7-3555LE 2.5GHz

Memory

Built-in 4GB DDR3 1600 MHz (UNO-3083G/3085G/3073G/3075G can support up to 16GB RAM by project)

Storage

CF-2 x CFast slot

Audio

Mic in, Line Out

Display

1 x DVI-I, 1 x HDMI (2 x independent displays)

Indicators

LEDs for Power, Battery, LAN(Active, Status), Serial communication(Tx, Rx) and User Defined

PCI Slot Power

12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A, +3.3 V @ 6 A (total combined power consumption on the PCI slots should be less than 40W)

Mini PCIe Expansion

2 x Mini PCIe slots with 2 x SIM cards

PCI(e) Expansion

1x PCIex16 slot and 2x PCI slots

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Ethernet

LAN A: Intel 82579LM, LAN B: Intel 82574L

I/O Interface

Serial Ports

2 x RS-232/422/485 with DB9 connectors, automatic RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional)

LAN

2 x 10/100/1000Base-T RJ-45 ports, wake on LAN and builtin boot ROM in flash BIOS

USB Port

9x USB(one internal, and 4x USB3.0 support on UNO-3083G-D64E/UNO-3085G-D64E)

Environment

Vibration Protection

IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.), CompactFlash: 2 Grms @ 5 ~ 500 Hz, HDD: 1 Grms @ 5 ~ 500 Hz

Shock Protection

IEC 68 2-27CompactFlash®: 50 G half sine, 11 ms; HDD: 20 G half sine, 11ms

Operating Temperature

-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)

Humidity

95% @ 40°C (non-condensing)
