Part Number

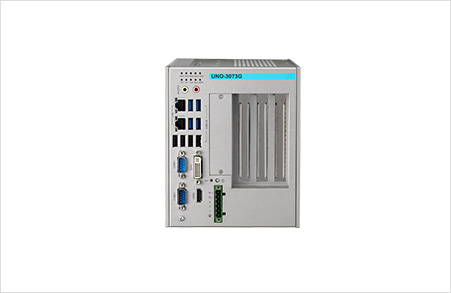

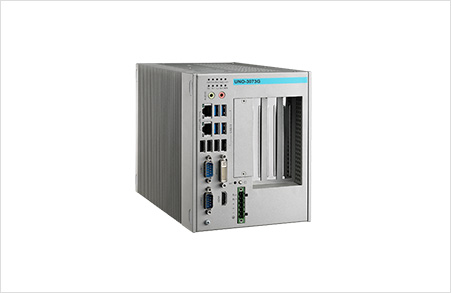

UNO-3073G-C54E

General

Mounting

Wallmount, Stand mount, Panel mount

Power Consumption

35W (Typical), 122W(Max)

Certifications

CE, UL, CCC, FCC, BSMI

Weight

4.5 kg

Power Requirement

12V ±20%/ 24V ±20% (e.g +24 V @ 5 A)

OS Support

Windows XP, Windows7/8, WES7, WES-2009, Win 10 Ent. LTSB

System Design

Fanless with no internal cabling (except COM1/COM2)

Enclosure Housing

Aluminum

Dimensions

148 x 238 x 177 mm (5.8" x 9.3" x 7.0")

System Hardware

CPU

Intel Celeron 847E 1.1GHz

Memory

Built-in 4GB DDR3 1600 MHz (UNO-3083G/3085G/3073G/3075G can support up to 16GB RAM by project)

Storage

CF-2 x CFast slot

Audio

Mic in, Line Out

Display

1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays)

Indicators

LEDs for Power, Battery, LAN(Active, Status), Serial communication(Tx, Rx) and User Defined

PCI Slot Power

12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A, +3.3 V @ 6 A (total combined power consumption on the PCI slots should be less than 40W)

Mini PCIe Expansion

2 x Mini PCIe slots with 1 x SIM card

PCI(e) Expansion

1x PCIex16 slot and 2x PCI slots

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

I/O Interface

Serial Ports

2 × RS-232/ 422/ 485 with DB9 connectors, automatic RS-485 data flow control, 2 x RS-232 (optional)

LAN

2 x 10/100/1000Base-T RJ-45 ports, wake on LAN in flash BIOS

USB Port

9x USB(one internal, and 4x USB3.0 support on UNO-3083G-D64E/UNO-3085G-D64E)

Environment

Humidity (Operating)

95% @ 40° C (non-condensing)

Vibration Protection

IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.); CompactFlash: 2 Grms @ 5 ~ 500 Hz, HDD: 0.5Grms@5~500Hz

Shock Protection

IEC 68 2-27CompactFlash: 50 G @ wall mount, half sine, 11 ms; HDD: 20 G @ wall mount, half sine, 11ms

Operating Temperature

- 10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)
