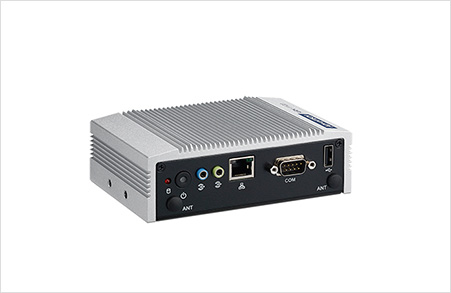

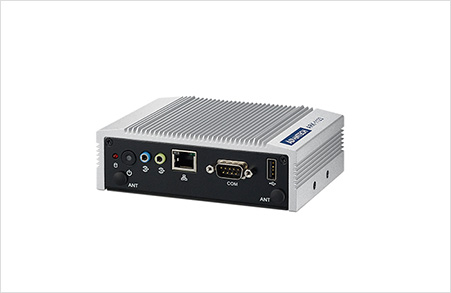

Part Number

ARK-1123H-U0A2E

Processor

CPU

Intel Celeron Processor J1900 Quad Core 2.0 GHz SoC

Core Number

4

Frequency

2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)

L2 Cache

2 MB

BIOS

AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)

Memory

Technology

DDR3L 1333 MHz

Max. Capacity

8GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel® Atom SoC integrated

Graphic Engine

DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2

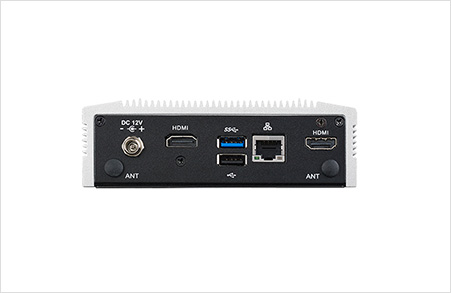

HDMI

2 x Lockable HDMI connector, support up to 1920 x 1080 at 60Hz (2nd HDMI w/o audio function by Intel limitation)

Audio

Main System

ALC-888S, High Definition Audio. Line-out & Line-in

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

I/O Interface

Serial Port

1 x RS-232/422/485 (BIOS selectable)

USB Interface

2 x USB 2.0 & 1 x USB3.0

Other

Watchdog Timer

255 levels timer interval, setup by software

Expansion

Mini PCIe

1 x Full-size Mini PCIe, support WLAN or WWAN module

Storage

2.5" Drive Bay

1 x 2.5” SATA HDD Bay (Max Height 9.5mm)

mSATA

1 x Half-size mPCIe (Suggest to assembly by CTOS or T-Part due to complex installation)

Software Support

Microsoft Windows

WES7, Windows 7, WE8S, Windows 8 and Windows 10 (32-bit support by project)

Linux

Support (by Project)

Power

Input Voltage

12 VDC

Power Adaptor

AC to DC, DC12 V/3 A, 36 W with threaded design

Consumption

Typical 5.64 W, Max. 14.04 W

Mechanical

Construction

Aluminum housing

Mounting

VESA/DIN Rail/Wall Mounting Kits (Optional)

Dimensions

133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Weight

0.8kg

Environment

Operating Temperature

With extended temperature SSD/mSATA/RAM : -20 ~ 60° C with 0.7m/s air flow With standard temperature HDD/SSD/mSATA/RAM peripherals:0 ~ 40° C with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis

Shock During Operation

With mSATA/SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

Regulation

EMC

CE/FCC Class B, CCC, BSMI

Safety

UL, CCC, BSMI, CB
