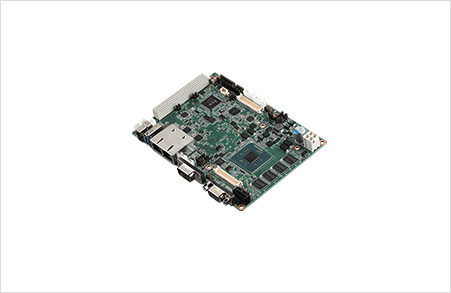

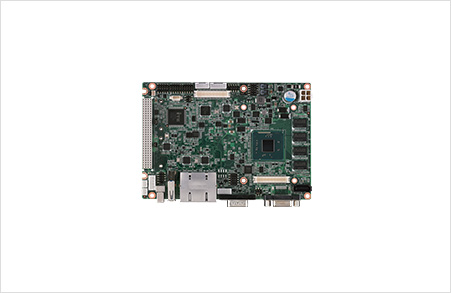

Part Number

PCM-9365E-2GS3A1E

PCM-9365EV-4GS3A1E

PCM-9365EZ22GS3A1E

Processor

CPU

Intel Atom E3825

Intel Atom E3825

Intel Atom E3825

Burst Frequency

1.33 GHz (Dual-Core)

1.33 GHz (Dual-Core)

1.33 GHz (Dual-Core)

Max Turbo Frequency

N/A

N/A

N/A

L2 Cache

1 MB

1 MB

1 MB

BIOS

AMI UEFI BIOS at 64 Mb

AMI UEFI BIOS at 64 Mb

AMI UEFI BIOS at 64 Mb

Memory

Technology

DDR3L 1066 MHz

DDR3L 1066 MHz

DDR3L 1066 MHz

Max. Capacity

4 GB

4 GB

4 GB

Onboard Memory

2GB

4 GB

2GB

Display

Controller

Intel Gen7 graphic engine

Intel Gen7 graphic engine

Intel Gen7 graphic engine

Processor Graphics

DirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2

DirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2

DirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2

VGA

2560 x 1600 at 60Hz

2560 x 1600 at 60Hz

2560 x 1600 at 60Hz

LVDS

48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, the 2nd LVDS is supported by request; Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter

48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, the 2nd LVDS is supported by request; Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter

48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, the 2nd LVDS is supported by request; Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter

HDMI

HDMI 1.4a for HD video playback, 1080P at 60Hz

HDMI 1.4a for HD video playback, 1080P at 60Hz

HDMI 1.4a for HD video playback, 1080P at 60Hz

Multiple Display

VGA + LVDS, HDMI*+ LVDS, LVDS + LVDS*

VGA + LVDS, HDMI*+ LVDS, LVDS + LVDS*

VGA + LVDS, HDMI*+ LVDS, LVDS + LVDS*

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Realtek RTL8111E-VL-CG

Realtek RTL8111E-VL-CG

Realtek RTL8111E-VL-CG

Connector

2 x RJ-45

2 x RJ-45

2 x RJ-45

Audio

CODEC

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

SATA

1, up to 3Gb/s (300 MB/s)

1, up to 3Gb/s (300 MB/s)

1, up to 3Gb/s (300 MB/s)

mSATA

1 x Full-size

1 x Full-size

1 x Full-size

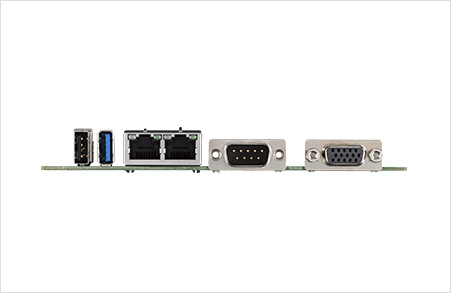

Rear I/O

Ethernet

2 (10/100/1000Mbps)

2 (10/100/1000Mbps)

2 (10/100/1000Mbps)

VGA

1

1

1

HDMI

1 (support by request)

1 (support by request)

1 (support by request)

USB 2.0

1

1

1

USB 3.0

1

1

1

Serial

1 RS232/422/485 support auto flow control

1 RS232/422/485 support auto flow control

1 RS232/422/485 support auto flow control

Internal I/O

Serial

3 RS-232 (ESD protection: Air gap ±15kV, Contact ±8kV)

3 RS-232 (ESD protection: Air gap ±15kV, Contact ±8kV)

3 RS-232 (ESD protection: Air gap ±15kV, Contact ±8kV)

USB2.0

4

4

4

I2C

1 (Shared with SMBus pin)

1 (Shared with SMBus pin)

1 (Shared with SMBus pin)

SMBus

1

1

1

GPIO

8-bit

8-bit

8-bit

Expansion

Mini PCIe

1 x Full-size

1 x Full-size

1 x Full-size

PCI-104

1

1

1

Power

Power Type

Single 12V DC power input

Single 12V DC power input

Single 12V DC power input

Power Supply Voltage

12V ± 10%

12V ± 10%

12V ± 10%

Power Consumption (Typical)

0.39A @ 12V (4.68W)

0.44A @ 12V (5.28W)

0.39A @ 12V (4.68W)

Power Consumption(Max, test in HCT)

0.49A @ 12V (5.88W)

0.554A @ 12V (6.648W)

0.49A @ 12V (5.88W)

Power Management

ACPI

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-40 ~ 85° C (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

Physical Characteristics

Dimensions (L x W)

146 x 102 mm (5.7" x 4"), same as 3.5"

146 x 102 mm (5.7" x 4"), same as 3.5"

146 x 102 mm (5.7" x 4"), same as 3.5"

Weight

0.54kg (1.19lb), weight of total package

0.54kg (1.19lb), weight of total package

0.54kg (1.19lb), weight of total package

Height

Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm

Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm

Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm
