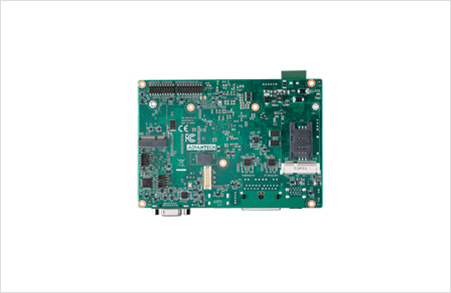

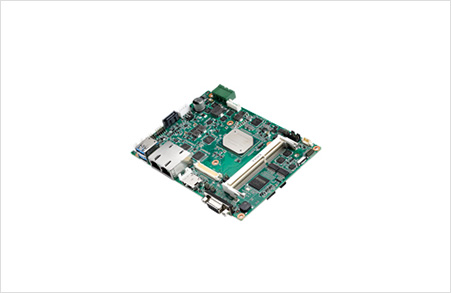

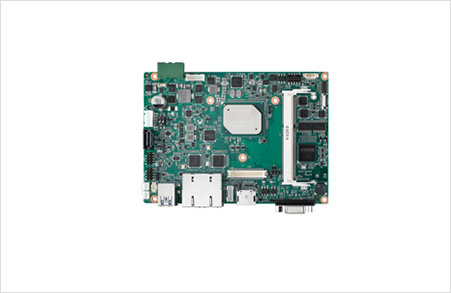

Part Number

PCM-9366N-S1A1E

PCM-9366N-S2A1E

Processor

CPU

Intel Celeron N3350

Intel Pentium N4200

Core Number

2

4

Base Frequency

1.1 (Dual-Core)

1.1 (Quad-Core)

Max Turbo Frequency

2 GHz

2.50 GHz

L2 Cache

2 MB

2 MB

BIOS

AMI UEFI BIOS at 64 Mb

AMI UEFI BIOS at 64 Mb

Memory

Technology

DDR3L 1867MHz

DDR3L 1867MHz

Max. Capacity

8 GB

8 GB

Socket

1 x 204-pin SODIMM

1 x 204-pin SODIMM

Display

Controller

Intel Gen9 Graphic engine

Intel Gen9 Graphic engine

Processor Graphics

DirectX11, OpenGL3.2, OpenCL1.2, Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2

DirectX11, OpenGL3.2, OpenCL1.2, Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2

VGA

2560 x 1600 at 60Hz

2560 x 1600 at 60Hz

LVDS

48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter

48-bit dual LVDS up to WUXGA 1920 x 1200 at 60Hz, Supports 3.3/5/12V for VDD power, 1A@5V/12V for inverter

HDMI

HDMI 1.4a for HD video playback, 1080P at 60Hz

HDMI 1.4a for HD video playback, 1080P at 60Hz

Mulit-Display

VGA + HDMI+ LVDS/eDP*

VGA + HDMI+ LVDS/eDP*

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Intel i210

Intel i210

Connector

2 x RJ-45

2 x RJ-45

Audio

CODEC

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

SATA

1, up to 6Gb/s (600MB/s)

1, up to 6Gb/s (600MB/s)

mSATA

1 x Full-size

1 x Full-size

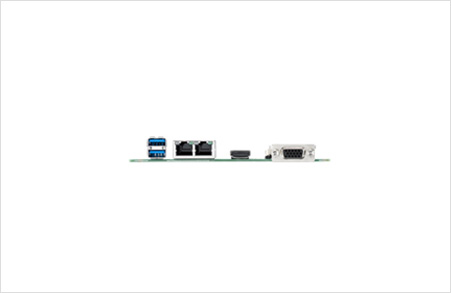

Rear I/O

Ethernet

2 (10/100/1000Mbps)

2 (10/100/1000Mbps)

VGA

1

1

HDMI

1

1

USB 3.0

2

2

Internal I/O

Serial

2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)

2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)

USB2.0

4

4

I2C

1 (Shared with SMBus pin)

1 (Shared with SMBus pin)

SMBus

1

1

GPIO

2 x 8-bit

2 x 8-bit

Expansion

Mini PCIe

1 x Full-size

1 x Full-size

M.2

1 x E key

1 x E key

Power

Power Type

9-36V DC power input

9-36V DC power input

Power Consumption (Typical)

TBD

TBD

Power Consumption (Max)

TBD

TBD

Power Management

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

146 x 102 mm (5.7" x 4"), same as 3.5"

146 x 102 mm (5.7" x 4"), same as 3.5"

Weight

0.54kg (1.19lb), weight of total package

0.54kg (1.19lb), weight of total package

Total Height

Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm

Top Side: 19.5 mm; Bottom Side: 7.8 mm; PCB: 1.6 mm
